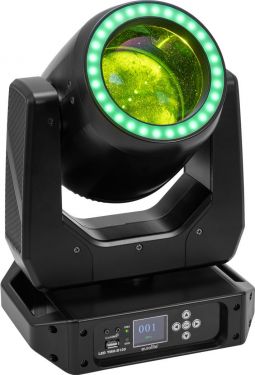

LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus
1 powerful LED 120 W COB (chip-on-board) cold white (CW)
30 powerful LEDs 0.2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Positioning within 540° PAN, 240° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating
Dimmer; color animations with adjustable color
Beam effect
Color wheel with 7 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed in both directions; switchable color change (mode 1: only full colors, mode 2: color-change at every position)
Gobo wheel with static gobos, 13 gobos und open shake effect
4 integrated show programs
The device is cooled by cooling fan at the base; cooling fan at the Head
Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
Preprogrammed in Light Captain
Flicker-free
DMX fail mode (hold; zero values)
With a beam angle of 2°
With omega bracket
Multicolor LCD display
2 Rugged carrying handles
4 x rubber feet
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
Application possibility: Standing; suspended
1 x moving light, 1 x power cord, 1 x omega bracket, 1 x safety eyelet, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
170 W
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction:
3 x 1.0 mm² H05VV-F
Cable length:
1.1 m
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 2 A fuse replaceable
Lamp type:
LED lamp
LED type:
1 x 120 W COB (chip-on-board) cold white (CW) 30 x 0.2 W SMD 5050 3in1 R/G/B (homogenous color mix)
Max. TILT movement:
240° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:
540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:
2 - 20 Hz
Equipment:
Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating
Color generation:
Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions; switchable color change (mode 1: only full colors, mode 2: color-change at every position)
Gobos:
Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:
21
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
1 x cooling fan at the base 1 x cooling fan at the head
Control:
Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
