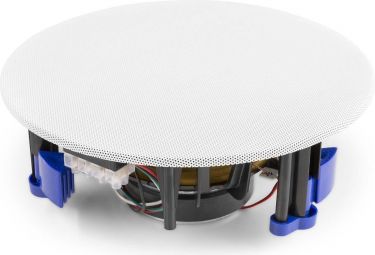

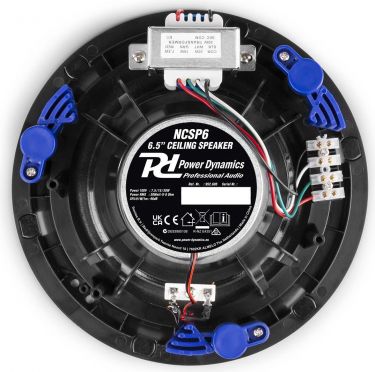

The NCSP series is a series of low profile ceiling speakers with a quick fit system for easy assembly. This high quality 2-way speaker is equipped with a metal flush fitting grille (with magnetic closure) and a 100V line transformer. Ideal for the installation of several speakers at longer distances.
100V Ceiling speaker
Magnetic fit steel grille
Slim low-profile speaker grille for a sleek finish
2-Way coaxial speaker
Supplied per piece
Colour: White
Speaker type
Passive (non-amplified)
Product colour
White
Output power: RMS
30W
Tweeter type
Mylar
Diameter tweeter
1/2"
Diameter woofer
6.5"
Magnet type
Ferrite
Impedance
100V
Tappings power (100V)
7.5W, 15W, 30W
Frequency response
50Hz - 20.000Hz
SPL @ 1W/1m
90dB
IP rating
N/A
Mounting diameter
190mm
Mounting depth
80mm
Dimensions (L x W x H)
Ø215mm
Weight (kg)
0,95
Bundle no.: 10103088
Set consisting of: 1 x PDV240MP3 PA Mixer Amplifier 240W/100V 4 zones 4 x NCSP6 Low Profile Ceiling Speaker 100V 6,5" White 2 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
Bundle no.: 10103122
Set consisting of: 1 x PDV120MP3 PA Mixer Amplifier 120W/100V 4 zones 2 x NCSP6 Low Profile Ceiling Speaker 100V 6,5" White 1 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
