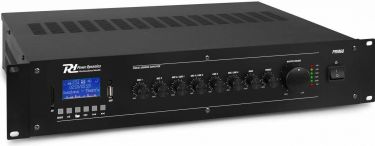

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | PRM60 100V 6-CH Mixer-Amplifier 60W 10A88K10
Delivery time: 4-8 workdays. | |
| |
| | The PRM series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These amplifiers are equipped with BT receiver and USB/SD ports for MP3 playback including a bright LCD display with ID3 Tag. All PRM amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc. - 60W 100V 6-Channel mixer amplifier
- MP3 Player with USB/SD slots
- Using BT wireless technology for audio streaming
- LCD control panel with ID3 tag
- 2x Mic/line inputs 6.3mm Jack, 2x RCA line inputs and 1x RCA line output
- 2x XLR microphone inputs with switchable phantom power (24V) and VOX priority
- 100V or 8 Ohm speaker output
- Bass and treble controls
- 19 Rack mountable (2U)
- Emergency operation by 24V battery (not supplied)
- Protections: Overheat, short circuit and power on delay
- Emergency mute input
- Including remote control
| Product colour | Black | | Playback options | BT streaming, USB, SD | | Output channels | 1 | | Output power: RMS | 60W | | Impedance | 8 Ohm, 100V | | Frequency response | 50Hz - 18.000Hz | | Signal-to-noise ratio | >75dB | | THD | <0,5% | | Signal-to-noise ratio: Line | >85dB | | Signal-to-noise ratio: Mic | >72dB | | Input level: Line | 150-470mV, 10 kOhm | | Input level: Mic. | 5-8mV, 600 Ohm | | Power supply | 100-240VAC 50/60Hz | | Dimensions (L x W x H) | 432 x 88 x 345mm | | Weight (kg) | 7,90 | | Included accessories | Power cable |
 pdf
| | | | | | | |
Bundle no.: 10103087 Set consisting of:
1 x PRM60 100V 6-CH Mixer-Amplifier 60W
4 x NCSP5B Low Profile Ceiling Speaker 100V 5.25" Black
1 x RX10 Speaker cable Round 2 x 1.5mm² black 50M
|
| |
Bundle no.: 10103128 Set consisting of:
1 x PRM60 100V 6-CH Mixer-Amplifier 60W
4 x NCSP5 Low Profile Ceiling Speaker 100V 5.25" White
1 x RX10 Speaker cable Round 2 x 1.5mm² black 50M
|
| |
Bundle no.: 10103102 Set consisting of:
1 x PRM60 100V 6-CH Mixer-Amplifier 60W
4 x CSPB5 Ceiling Speaker 100V 5"
1 x RX10 Speaker cable Round 2 x 1.5mm² black 50M
|
| |
Bundle no.: 10106120 Set consisting of:
3 x BC30V Black Speaker Pair 100V 8 Ohm 3" 60W - IPX5
1 x PRM60 100V 6-CH Mixer-Amplifier 60W
1 x RX10 Speaker cable Round 2 x 1.5mm² black 50M
|
| |
Bundle no.: 10106106 Set consisting of:
6 x CSPB5 Ceiling Speaker 100V 5"
1 x PRM60 100V 6-CH Mixer-Amplifier 60W
1 x RX10 Speaker cable Round 2 x 1.5mm² black 50M
|
| |
Bundle no.: 10106104 Set consisting of:
3 x BV40B Background Speaker Set Black 4" 100V
1 x PRM60 100V 6-CH Mixer-Amplifier 60W
1 x RX10 Speaker cable Round 2 x 1.5mm² black 50M
|
| |
Bundle no.: 10106107 Set consisting of:
8 x CSPB5 Ceiling Speaker 100V 5"
1 x PRM60 100V 6-CH Mixer-Amplifier 60W
1 x RX12W 100V Speaker cable Round 2 x 1.5mm² white 100M
|
|
| | |
| | |
