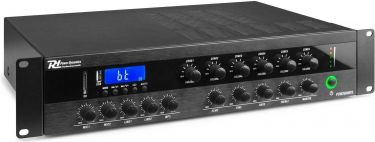

The PDW series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These fully featured, high power mixer amplifiers with 6 zone outputs are equipped with separate volume controls and features an integral MP3 module with USB and SD Card slot, a FM tuner and internal BT receiver. All PDW amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. This series of amplifiers is suitable for applications in a bank, town hall, supermarket, school, hotel, restaurant, shopping center or any other public space. - PA amplifier with 6 zones and separate volume controls
- Media player with FM Tuner, USB and SD slot
- BT receiver for audio streaming
- 360W Class-D amplifier
- 100V/70V or 16, 8, 4 Ohm
- Zone volume control
- Bass/Treble/Echo control
- Digital LCD display
- XLR microphone input with switchable phantom power (24V)
- 6.3 mm microphone input with priority
- 2x RCA line inputs and 1x RCA line output
- 19 rack mountable (2U)
| Product colour | Black | | Playback options | BT streaming, USB, SD, FM radio | | Output channels | 6 | | Output power: Max | 360W | | Output power: RMS | 200W | | Impedance | 4 Ohm, 8 Ohm, 16 Ohm, 70V, 100V | | Frequency response | 100Hz - 19.000Hz | | THD | <1% | | Signal-to-noise ratio: Line | >85dB | | Signal-to-noise ratio: Mic | >80dB | | Input level: Line | 400mV | | Input level: Mic. | 10mV | | Power supply | 100-240VAC 50/60Hz | | Dimensions (L x W x H) | 310 x 420 x 95 mm (with rack ears: 480 mm) | | Weight (kg) | 8,75 | | Included accessories | Mounting bracket, Power cable |
