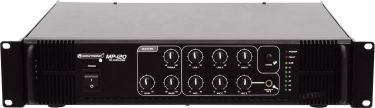

PA mixing amplifier, 120 W RMS ELA-Mono-Mischverstärker, 120 Watt - 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- (19) 48.3 cm rack installation 2 U
- The device is cooled by cooling fan
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
- 1 x amplifier, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 240.00 W | | Protection class: | Protection class I | | Output power: | 120 W RMS | | Power connection: | Fixed power supply cord with safety plug | | Device fuse: | 5 x 20 mm, T 2 A fuse replaceable | | Frequency range: | 80 - 14000 Hz | | S/N ratio: | >75 dB microphone >85 dB line | | THD: | <0.5 % at 1 kHz | | Cooling: | Cooling fan | | Impedance: | 4-16 ohms; public address systems 100V; Public address systems 70V | | Housing color: | Black | | Circuitry: | Class AB | | Controls: | Power on/off transient; Overvoltage; short-circuit | | Status LED: | Power, fault, level meter | | Connections: | Input: microphone via 3 x 6.3 mm plug (unbal.) Input: line via 3 x stereo RCA Output: line via 1 x stereo RCA Output: speaker via screw terminal | | Equalizer: | Channel: 1 x 2-band tone control mono | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48.3 cm Depth: 40 cm Height: 8.9 cm | | Weight: | 9.00 kg |

 |
