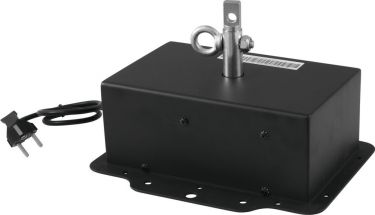

DMX controlled motor for mirror balls up to 100 cm, up to 5 RPM DMX-steuerbarer Motor für Spiegelkugeln bis 100 cm, bis zu 5 U/Min. - The maximum load always means the mirror ball weight including chains and the fixation material
- 2 chains and 4 quick links must be ordered separately
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Control via stand-alone; DMX
- Suitable for a mirror ball with a diameter of up to 100 cm
- For application areas such as: Clubs/dancing school
- Rotation speed adjustable; Rotation direction adjustable
- Preprogrammed in LED PC-Control 512
- 1 x motor, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 5 W | | Protection class: | Protection class I | | Power connection: | Fixed power supply cord with safety plug | | Cable construction: | 3 x 0.75 mm² H05VV-F | | Cable length: | Approx. 0.9 m | | Fuse: | Circuit breaker, 2.5 A | | Speed: | 0 RPM - 5 RPM forward/backward | | DMX channels: | 1 | | Control: | Stand-alone; DMX | | Fixtures available for: | LED PC-Control 512 | | Maximum load: | 40 kg | | Max. mirror ball diameter: | 100 cm (EUROLITE) | | Housing color: | Black matte | | Diameter mounting holes: | 2 x Ø12mm; 4 x Ø8mm; 10 x Ø6mm | | Material: | Metal, 3 mm | | Dimensions: | Width: 28.5 cm Depth: 23.5 cm Height: 19 cm | | Weight: | 6.20 kg |

  |
