The price includes 25% Danish VAT

In stock in our shop
Delivery time: 1 workday when ordered before 15.00.

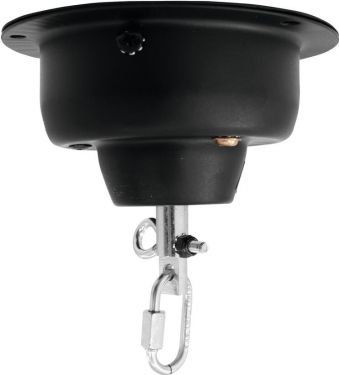

Mirror ball motor for mirror balls up to 40 cm diameter

Spejlkuglemotor med op til 40 cm diameter

The maximum load always means the mirror ball weight including chains and the fixation material
2 chains and 4 quick links must be ordered separately
1.5 rotations per minute
The motor always has to be installed with a secondary safety attachment
Before taking into operation for the first time, the installation has to be approved by an expert
Control via plug and play
Suitable for a mirror ball with a diameter of up to 40 cm
For application areas such as: Clubs/dancing school
1 x motor, 1 x chain link, 3 x mounting material, 3 x screw, 1 x user manual

Power supply:	230 V AC, 50 Hz
Power consumption:	4 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Fixed power supply cord with safety plug
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 0.9 m
Speed:	1.5 RPM - 1.8 RPM , 360 ° forward/backward
Control:	Plug and play
Maximum load:	4 kg
Max. mirror ball diameter:	40 cm (EUROLITE)
Housing color:	Black
Diameter mounting holes:	3 x Ø5mm
Material:	Metal
Dimensions:	Height: 9 cm Diameter: Ø 10.8 cm
Weight:	0.38 kg
Chain link
Material:	Steel
Color:	Silver
Dimensions:	Diameter: Ø 0.25 cm
