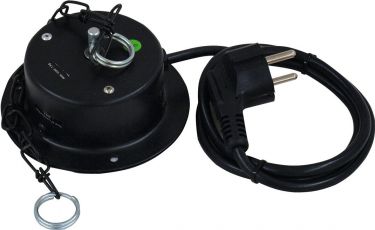

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite MD-1030 Rotary Motor with Plug 10A23D96 | 50301205
Delivery time: 4-8 workdays. | |
| |
| | Motor for mirror balls up to 30 cm with 3 RPM Motor für Spiegelkugeln bis 30 cm mit 3 Umdrehungen/Min - The maximum load always means the mirror ball weight including chains and the fixation material
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Suitable for a mirror ball with a diameter of up to 30 cm
- For application areas such as: Clubs/dancing school
- 1 x motor, 1 x chain, 3 x mounting material, 3 x screw, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 4 W | | IP classification: | IP20 | | Protection class: | Protection class I | | Power connection: | Fixed power supply cord with safety plug | | Cable construction: | 3 x 0,75 mm² H05VV-F | | Cable length: | Approx. 0,8 m | | Speed: | 3 RPM | | Maximum load: | 3 kg | | Max. mirror ball diameter: | 30 cm (EUROLITE) | | Housing color: | Black matte | | Diameter mounting holes: | 3 x Ø5mm | | Material: | Metal | | Dimensions: | Height: 5,8 cm
Diameter: Ø 10,8 cm | | Weight: | 370 g | | Chain | | Material: | Metal, 2 mm | | Color: | Black | | Dimensions: | Length: 30 cm |
 | | |
