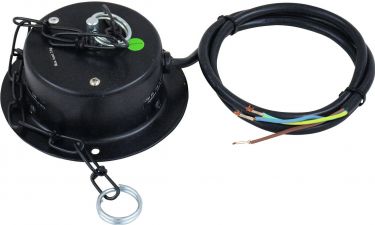

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite MD-1030 Rotary Motor w/o Plug 10A23D98 | 50301200
Delivery time: 4-8 workdays. | |
| |
| | Motor for mirror balls up to 30 cm with 3 RPM Motor til spejlkugler op til 30cm med 3 omdrejninger per. min. - The maximum load always means the mirror ball weight including chains and the fixation material
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Suitable for a mirror ball with a diameter of up to 30 cm
- For application areas such as: Clubs/dancing school
- 1 x motor, 1 x chain, 3 x mounting material, 3 x screw, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 4 W | | IP classification: | IP20 | | Protection class: | Protection class I | | Power connection: | Fixed supply cord with open wires | | Cable construction: | 3 x 0.75 mm² H05VV-F | | Cable length: | Approx. 0.8 m | | Speed: | 2.5 RPM | | Maximum load: | 3 kg | | Max. mirror ball diameter: | 30 cm (EUROLITE) | | Housing color: | Black | | Diameter mounting holes: | 3 x Ø5mm | | Material: | Metal | | Dimensions: | Height: 6 cm Diameter: Ø 11 cm | | Weight: | 0.30 kg | | Chain | | | Material: | Metal, 2 mm | | Color: | Black | | Dimensions: | Length: 30 cm |
| | |
