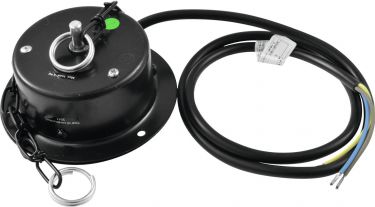

Eurolite MD-1015 Rotary Motor w/o plug

10A23E16 | 50301100

239,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

Motor for mirror balls up to 30 cm with 1.5 RPM

Motor til spejlkugler, op til 30cm med 1.5 omdrejning per. min.

The maximum load always means the mirror ball weight including chains and the fixation material
1.5 rotations per minute
The motor always has to be installed with a secondary safety attachment
Before taking into operation for the first time, the installation has to be approved by an expert
Suitable for a mirror ball with a diameter of up to 30 cm
For application areas such as: Clubs/dancing school
1 x motor, 1 x chain, 3 x mounting material, 3 x screw, 1 x user manual

Power supply:	230 V AC, 50 Hz
Power consumption:	4 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Fixed supply cord with open wires
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 0.8 m
Speed:	1.5 RPM , 360 ° forward/backward
Maximum load:	3 kg
Max. mirror ball diameter:	30 cm (EUROLITE)
Diameter mounting holes:	3 x Ø5mm
Material:	Metal
Color:	Black
Dimensions:	Height: 6 cm Diameter: Ø 10.8 cm
Weight:	0.32 kg
Chain
Material:	Metal, 2 mm
Dimensions:	Length: 30 cm
