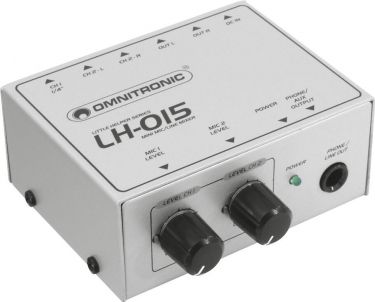

2-channel miniature mic/line mixer 2-Kanal-Mikrofon-Line-Mixer im Miniaturformat - Distributes the signal of 2 audio sources (microphones, instruments or line level units) to 1 mono output
- 1 mono mic/line input (6.3 mm jack) with separate level control
- 1 stereo line input (RCA) input with separate level control
- 2 mono master outputs (RCA and 6.3 mm jack) e.g. for PA amplifier, mixer and headphones
- 1 x user manual, 1 x external mains adapter, 4 x foot, 1 x mixer
| Power supply: | 12V 150 mA | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >100 dB | | Impedance: | Input: microphone 10 kOhm Input: line 20 kOhm Output: 50 Ohm | | Gain: | Microphone 32 dB Line 20 dB | | Dimensions: | Width: 9.5 cm Depth: 7.3 cm Height: 4 cm | | Weight: | 0.50 kg |
  |
