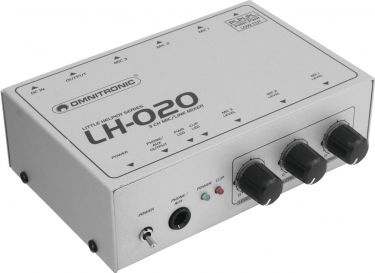

 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Omnitronic LH-020 3-channel Mic Mixer 10A17F99 | 10355020
Leveringstid: 6 til 10 dager. | |
| |
| | 3-channel microphone mixer 3-Kanal-Mikrofonmixer - Compact mixer to mix 3 microphones to 1 line output, with individual level control
- 3 microphone input channels with separate level controls, switchable phantom power and low cut
- 1 master output with line level, clip LED
- 1 headphones output (6.3 mm jack)
- Inputs and output via balanced XLR connectors
- Desktop console housing
- 1 x user manual, 1 x external mains adapter, 4 x foot, 1 x mixer
| Power supply: | 12V DC 150 mA Or 18V DC | | Pin configuration: | Inside - / outside + | | Protection class: | Protection class III | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) Battery/battery pack | | Battery: | 2 x 9.0 V E block (not included) | | Frequency range: | 25 - 16000 Hz | | S/N ratio: | >75 dB | | THD: | <0.02 % at 1 kHz | | Phantom power: | Or 18 V DC | | Impedance: | Input: 600 Ohm 600 Ohm | | Gain: | 60 dB | | Housing color: | Silver | | Control elements: | Power switch, low cut switch, phantom power switch, level control per channel | | Status LED: | Power, clip | | Connections: | Input: microphone via 3 x 3-pin XLR Output: microphone via 1 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version | | Input channels: | 3 x mono via XLR, channel control via rotary dial | | Max. level: | Input: -14 dB Output: +14 dB | | Housing design: | Desktop console housing | | Dimensions: | Width: 14.3 cm Depth: 9.3 cm Height: 4.5 cm | | Weight: | 0.76 kg |
   | | | | |
Omnitronic EM-260 Entertainment Mixer |
|
| | |
