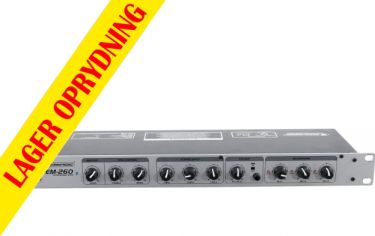

 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Omnitronic EM-260 Entertainment Mixer 10A17G86 | 10007075
 På lagerLeveringstid: 2 til 5 dager.
| |
| |
| | 6-channel microphone/line mixer 6-Kanal-Mikrofon-Line-Mischer, Silber - 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
- Ideal e.g. for karaoke when microphones need to mixed with CDs
- 3 mono input channels mic/line (XLR, bal.), switchable
- 3 stereo line input channels (RCA)
- Clip LED for each microphone channel
- Each microphone input with optional 12 V phantom power
- FX send/return with FX level control
- Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
- Stereo record output (RCA)
- (19) 48.3 cm rack installation 1 U
- 1 x device, 1 x power cord, 1 x user manual
| Power supply: | 115/230 V AC, 50/60 Hz | | Power consumption: | 5 W | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz | | Phantom power: | 12 V DC | | Housing color: | Silver | | Control elements: | Phantom power switch, power switch, FX send/returne control | | Status LED: | Power, clip | | Connections: | Input: mic/line via 3 x 3-pin XLR
Input: line via 3 x stereo RCA
Input: FX via 2 x 6.3 mm jack socket (mono) mounting version
Output: rec. via 1 x stereo RCA
Output: master via 2 x 6.3 mm jack socket (mono) mounting version
Output: FX via 1 x 6.3 mm jack socket (stereo) mounting version | | Channels: | Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 2-band tone control EQ 100Hz/10kHz
Microphon chanal: 3 x mono with Mic-line switch via XLR, channel control via Rotary dial, 1 Send/AUX, FX routing switch,
Master output: 1 x stereo via Jack, channel control via Rotary dial | | Max. level: | Input: Microphone +14 dB
Input: line +24 dB | | Material: | Metal | | Housing design: | (19") 48.3 cm rack installation 1 U | | Dimensions: | Width: 48,3 cm
Depth: 12,3 cm
Height: 4,45 cm | | Weight: | 2,20 kg |
  | | |
