Delivery time: 4-8 workdays. | |
| |

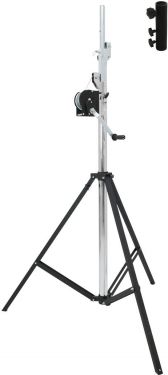

| | High-quality winch-stand with matching massive adapter - 1-gear winch for easy lifting of the loads
- Automatic braking system
- Safety bolt for mechanical locking
- Easy handling
- Complies with DIN 15560-27 and DIN EN ISO 12100-2
- Adjustable height
- TÜV Süd certified
- For application areas such as: Mobile use
- 1 x user manual
- For stands with telescopic tube 35 mm
- Connection element for cross beam with 28 mm TV spigot
- With M6 and M8 fixation screw
- Heavy version for highest stability
- TV spigot
- 1 x device, 1 x user manual, 2 x knurled screw
| Weight: | 25.61 kg | | EUROLITE STT-400/85 Winch Stand TÜV/GS | | | Maximum carrying capacity: | 85 kg | | Minimum load: | 25 kg | | Standard: | DIN 15560-27, DIN EN ISO 12100-2 | | Height: | Maximum: 400 cm above 3 sections Minimum: 175 cm | | Attachment system: | Ø 35mm | | Steel rope: | Ø 4 mm | | Type (general stands): | Light stand/wind up | | Transport dimensions: | 175 cm x 30 cm x 27 cm | | Base area: | Ø 160 cm | | Weight: | 24.10 kg | | EUROLITE STV-3529 Adapter long | | | Maximum load BGV C1 (8-fold): | 50 kg | | Maximum load WLL (4-fold): | 100 kg | | Attachment system: | TV spigot Ø 28mm Ø 35mm | | Type (general stands): | Accessory | | Material: | Steel, 6 mm, powder-coated | | Dimensions: | Width: 8.50 cm Depth: 5 cm Height: 19.50 cm | | Weight: | 1.50 kg |
| | | | |
Eurolite STT-400/85 Winch Stand TÜV/GS |
|
| | |
| | |
