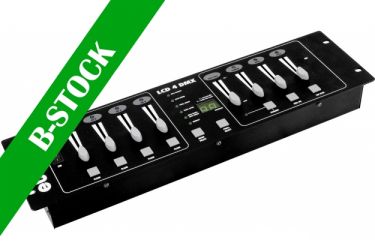

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite LCD-4 DMX Dimmer controller "B-STOCK" 10A23D40|B | 70064590
 In stock in our shopDelivery time: 1 workday when ordered before 15.00.
| |
| |
| | B-stock er en 100% ny vare som sælges ekstra billigt, typisk fordi varen har været åbnet vist frem og pakket ned igen. Lighting controller 4 channels Lichtsteuerung 4 Kanäle Art. Nr. 70064590 - Can be used as DMX controller or analog lighting controller (4 channels)
- 4 channel-faders with LED
- Fade Time fader with LED for adjusting the step time
- Master-fader with LED for adjusting the total output level
- Audio-fader with LED for adjusting the music sensitivity
- Flash-button per channel and master-flash (Full On-button)
- LED-display of all modes
- 0/10 V-output via one 8-pin DIN-socket
- 42 built-in programs
- Dimmer: Manual control of the channels via sliders
- Full On: all channels can be switched on together
- Program speed adjustable via speed-fader or Tap Sync-button
- Sound-control via external signal or integrated microphone
- External signal connection via RCA socket
- Power supply via included power unit or via 18-20 V dimmer pack
- Rack installation
- Only for professional use
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 6,00 W | | Width: | 48,3 cm | | Height: | 6,5 cm | | Depth: | 13,35 cm | | Device | | Battery pack type: | 1 x Nickel metal hydride 3,6 V, | | via 15-18 V DC, 300 mA power unit included in the delivery | | or optional dimmer-pack | | Number of control channels: | 4 | | Integrated programs: | 42 | | Sound-control: | via built-in microphone or via audio-input | | Audio-input: | RCA | | Audio-sensitivity: | 0.1-1 V | | DMX512 output: | 3-pin XLR connector | | Analogue output: | 8-pin DIN-socket, 4 channels | | Output voltage: | 0/10 V DC | | Dimensions (L x W x H): | 483 x 132 x 65 mm | | Rack installation with 3 u | | Minimum mounting depth: | 90 mm | | Weight: | 2 kg |
| | |
