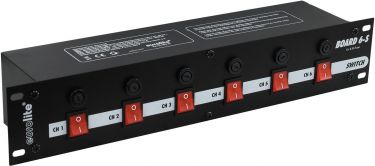

6-fold switching panel for separate switching of 6 safety sockets Panel mit 6 Schaltern zum getrennten Schalten von 6 Schutzkontaktdosen - Fully cabled housing with 6 safety sockets
- 6 switches
- Control via on/off switch on device
- With profile rails suitable for 19 units
- 1 x device, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 3680 W | | Output power: | Max. 1150 W per channal | | Output current: | Max. 5 A per channal | | Power connection: | Fixed power supply cord with safety plug | | Power output: | 6 x safety contact (F), hinged lid mounting version fused | | Fuse: | 5 x 20 mm, F 6.3 A fuse replaceable | | Control: | On/off switch on device | | Control channels: | 6 | | Diameter mounting holes: | 4 x Ø5mm | | Material: | Metal | | Color: | Black, matte | | Front panel width: | 19" | | Mounting height: | Approx. 9 cm (2 U) | | Mounting depth: | 120 mm | | Dimensions: | Width: 48.3 cm Depth: 12.5 cm Height: 8.9 cm | | Weight: | 2.00 kg |
   |
