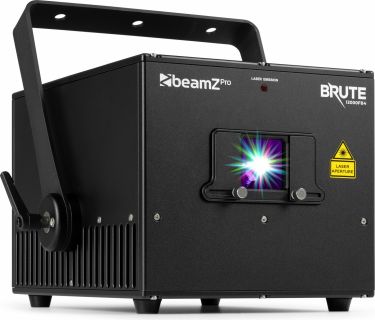

The Brute 12000FB4 has a guaranteed output power of 12W and provides analogue modulation, ensuring smoother colour fading and a much broader colour spectrum. Combining this high power with its precision 35K graphics scanners, the laser delivers outstanding accuracy and beam quality, making it highly suitable for demanding professional applications. The system can be controlled via the built-in Pangolin FB4 controller or run stand-alone in auto-mode activation. With its IP65-rated housing, the Brute 12000FB4 is fully protected against dust and water, making it ideal for both indoor and outdoor installations.
Perfect for fixed installations, mobile use, multimedia projects, long-distance outdoor applications, and ultra-precise graphics projections. - Full-colour, IP65 semiconductor diode laser system
- Red (2800mW), Green (2800mW) and Blue (6500mW) Powerful laser
- Guaranteed 12W output
- Pangolin FB4 controller
- Ethercon (in/out)
- Artnet, SACN
- Dust-proof aluminium housing for minimum maintenance
- OLED display
- Interlock emergency stop signal in/output Ethercon
- Scan Fail Safety system
- 35K@8° high speed optical scanner system
- Maximum scan angle 50°
- Temperature-controlled low-noise fan
- Ilda output
- X- en Y-Size inverter
- Analog RGB colour modulation
- Powerconnector TR in/output
| Product colour | Black | | Input connections | RJ45 (CAT) | | Output connections | ILDA, RJ45 (CAT) | | DMX connection | ART-Net | | ILDA | DB25 | | Laser Red | 2800mW @ 638nm | | Laser Green | 2800mW @ 525nm | | Laser Blue | 6500mW @ 455nm | | Scanner system | 35kpps @ 8° | | Maximum scanner angle | 50 degrees | | Beam divergence (full angle) | <1.0mrad (full angle) | | Guaranteed output (99mW) | 12000mW | | Maximum output (99mW) | 12000mW | | Power supply | 100-240VAC 50/60Hz | | Dimensions (L x W x H) | 370 x 216 x 280mm (without bracket) | | Weight (kg) | 8,70 |
