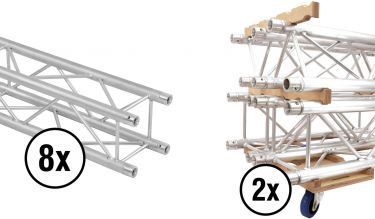

Alutruss Set QUADLOCK QL-ET34-2000 + Truss Transport Board

10A22F23 | 20000088

~~47.349,00NOK~~ 41.296,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

Strong EN-AW 6082 alloy for high loads
High-quality aluminum-tubes with 50 mm in diameter
Low weight
Distance center - center: 240 mm
Easy installation
Trusspipe: 50 mm
Made in Europe
For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
For further information about this product, please refer to the Data Sheet under Downloads
1 x connection set
Practical transport cart made of multiplex wood
Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
Quick and secure stacking with optional stacking ridges
Cut-outs for safety bands for safe transport of the truss elements
Grip hole
12 borings for mounting castors (optional)
The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
Made in Germany
Double ball race
Housing made of steel, zinc-plated
Roller race hub bearing
Replaceable bolt-on wheel
Carrying capacity: 450 kg per set (4 castors)
Made in Germany
For further information about this product, please refer to the Data Sheet under Downloads
Double-action brake (wheel and swivel)
Double ball race
Housing made of steel, zinc-plated
Roller race hub bearing
Replaceable bolt-on wheel
Carrying capacity: 450 kg per set (4 castors)
Made in Germany
For further information about this product, please refer to the Data Sheet under Downloads
Screw: hexagon screw M8 x30 DIN933 galvanized
Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
Washer: size 8.4 DIN125 electrogalvanized
Stacking ridge for quick and secure stacking of truss elements on matching transport carts
Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
Made in Germany
LC400/800daN surroundings
Complies with EN 12195-2
Ratchet lock

Weight:	103.58 kg
ALUTRUSS QUADLOCK QL-ET34-2000 4-way Cross Beam
Setup:	Easy installation
Trusspipe:	50 mm x 2 mm
Welding technique:	TIG-welding
Welding material:	AlMg 5
Alloy:	AIMgSi1 T6
Color:	Alu colored
Dimensions:	Length: 200 cm Width: 29 cm Height: 29 cm
Weight:	11.2 kg
ALUTRUSS Truss Transport Board Combo for 3 Wheels
Maximum load:	6 truss systems vertical (height approx. 2.10 m)
Dimensions:	Length: 60 cm Width: 30 cm Height: 4.10 cm
Weight:	2.19 kg
ROADINGER Swivel Castor 100mm BLUE WHEEL light blue
Color:	Light blue
Dimensions:	Height: 12.8 cm Diameter: Ø 10 cm
Weight:	0.66 kg
ROADINGER Swivel Castor 100mm BLUE WHEEL with brake
Weight:	0.93 kg
ROADINGER Bolt Set for Wheels
Weight:	0.09 kg
ALUTRUSS Truss Transport Ridge Combo
Material:	Birch multiplex, 30 mm
Dimensions:	Length: 60 cm Width: 3 cm Depth: 5 cm
Weight:	0.50 kg
SHZ Clamping Belt S400 Ratchet 5m/25mm black
Standard:	EN 12195-2,
Lock:	Ratchet lock
Color:	Black
Dimensions:	Length: 500 cm Width: 2.50 cm
Weight:	0.30 kg
