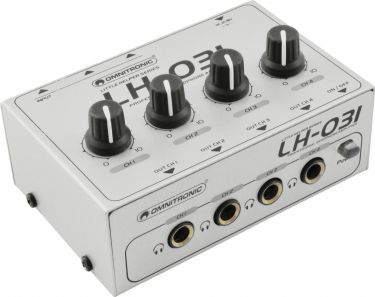

4-channel headphone amplifier, RCA and 6.3 mm jack
4-Kanal-Kopfhörerverstärker, Cinch und Klinke
Distributes the signal of 1 audio source to 4 sets of headphones
1 stereo input (switchable to mono) via RCA, 3.5 mm and 6.3 mm jack connectors
4 separately controllable headphone outputs via 6.3 mm jacks
For application areas such as: Installation; mobile use; mobile djs / entertainer
1 x device, 1 x external mains adapter, 4 x foot, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz 12V 150 mA
Protection class:
Protection class III
Power connection:
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>90 dB
THD:
<0.008 % at 1 kHz
Impedance:
Input: 100 kOhm , unbal. Output: 51 Ohm
Gain:
20 dB
Control elements:
Power switch, level control per channel
Connections:
Input: line via 1 x stereo RCA Input: line via 6.3 mm jack socket (stereo) mounting version Input: line via 1 x 3.5 mm jack (stereo) mounting version Input: headphones via 4 x 6.3 mm jack socket (stereo) mounting version
