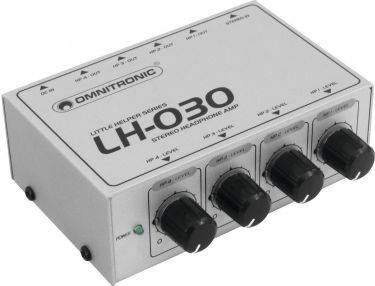

4-channel headphone amplifier, 6.3 mm jack 4-Kanal-Kopfhörerverstärker, Klinke - Distributes the signal of 1 audio source to 4 sets of headphones
- 4 channels with separate level controls and headphone outputs
- 1 x device, 1 x user manual, 1 x external mains adapter, 4 x foot
| Power supply: | 230 V AC, 50 Hz
12 V DC 150 mA | | Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >90 dB | | THD: | <0,008 % at 1 kHz | | Impedance: | Input: 100 kOhm , unbal.
Output: 51 Ohm | | Gain: | 20 dB | | Connections: | Input: line via 1 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 4 x 6.3 mm jack socket (stereo) mounting version | | Max. level: | Input: +14 dBV | | Dimensions: | Width: 11,3 cm
Depth: 7,3 cm
Height: 4 cm | | Weight: | 580 g |
  |
