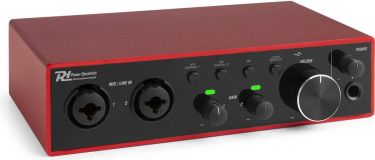

With the PDX-22 you have an audio interface that allows you to record the sound of multiple instruments simultaneously. You can create clear high quality microphone recordings thanks to the 2 switchable preamps. You can record sound at high levels without losing quality, as the audio interface provides ample headroom. Using the balanced line inputs, you can capture the sound of synthesizers and drum machines. You can choose to connect 2 mono instruments or 1 stereo instrument to the PDX22. - USB audio interface microphone preamp
- 2 Microphone preamps
- Hi-res 24-bit/192 kHz converters
- Headphone output with independent level control
- Direct Monitor unlocks monitoring (stereo/mono) with one click
- +48 V phantom power
- Switchable Air function
- 2x Combi Mic/instrument/line inputs: XLR/6.3mm jack
- 2 Line outputs: 6.3 mm jack balanced
- Stereo headphone output: 6.3 mm jack
- USB-C connectivity, compatible with MacOS, Windows and iPadOS
- Incl. USB cable (USB-C to USB-A)
| Frequency response | 20Hz - 20.000Hz | | Input connections | 6.3mm Jack, XLR (3-pin) | | Output connections | 6.3mm Jack | | Power supply | 5V via USB | | Dimensions (L x W x H) | 175 x 99 x 48mm | | Weight (kg) | 0,47 |
