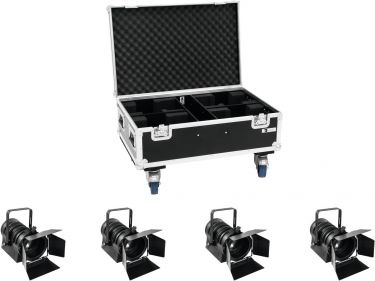

Eurolite Set 4x LED THA-40PC bk + Case

10A19D45 | 20000165

~~29.079,00NOK~~ 26.649,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

4x fanless Pc spot including PRO flightcase with wheels

1 powerful LED 57 W COB (chip-on-board) warm white (WW)
Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response) adjustable
Strobe effect
The device is cooled by passive convection cooling
Control via stand-alone; DMX
Preprogrammed in LED PC-Control 512; Light´J; Light Captain; Colorchief
Flicker-free
With a beam angle of 11° - 48°
Very high color rendering index (CRI)
With mounting bracket
LCD display
Rubber feet
Silent operation
For application areas such as: Trade fair and shop fitting; installation; stage; theater
Application possibility: Suspended; on stand
1 x spotlight, 1 x barndoor, 1 x filter frame, 1 x user manual
With accessory compartment
With 4 device compartments
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 25mm with rounded edges
4 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
4 x castors with 2 locking brakes
4 x built-in stacking trays in the cover
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under Downloads

Weight:	35.60 kg
EUROLITE LED THA-40PC Theater Spot bk
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	40 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Fixed power supply cord with safety plug
Fuse:	5 x 20 mm, T 1 A fuse replaceable
LED type:	1 x 57 W COB (chip-on-board) warm white (WW)
DMX channels:	1; 2
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX
Preprogrammed in:	LED PC-Control 512; Light´J; Light Captain; Colorchief
Projection:	Flicker-free
Beam angle:	11° - 48°
Beam angle (1/2 peak):	11 - 37°
Beam angle (1/10 peak):	17 - 48°
Color temperature:	3100K
Color rendering index (CRI):	91 Ra
Illuminance in Lux (lx):	Narrow 3m: 1656 lx, 6m: 424 lx Wide 3m: 348 lx, 6m: 103 lx
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	LCD display
Transport aid:	Rubber feet
Material:	Aluminum casting
Slot for spot length:	13.1 cm x 13.1 cm
Dimensions:	Length: 27.5 cm Width: 20.5 cm Depth: 25 cm
Weight:	3.85 kg
Noise classification:	Class 0 (no noise at all)
Mounting bracket
Diameter mounting holes:	1 x Ø10mm; 2 x Ø6mm
Material:	Metal, 3 mm
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 1 m
Barndoor
Material:	Aluminum, 1.5 mm; metal
Ring diameter:	Outside: 12.9 mm Inside: 10.9 mm
Filter frame
Diameter mounting holes:	1 x Ø4mm
Shape:	Octagonal
Material:	Aluminum, 0.8 mm
Dimensions:	Width: 13 cm Height: 13 cm Diameter: Ø 10.5 cm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x THA-40 PC with wheels
Maximum load:	100 kg
Aluminum profile frames:	25 mm
Case handle:	4 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	4 x castors with 2 locking brakes 4 x built-in stacking trays in the cover
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Device compartment:	31 cm x 13 cm x 15 cm
Accessory compartment:	9.5 cm x 47 cm x 18 cm
Inside dimensions:	71.5 cm x 47 cm x 18 cm
Dimensions:	Width: 78 cm Depth: 52 cm Height: 42.5 cm
Weight:	16.75 kg
