 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Eurolite LVH-3 AV switch 10A20B32 | 81013203
Leveringstid: 6 til 10 dager. | |
| |

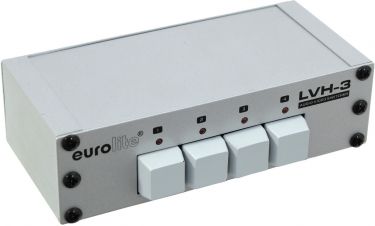

| | Manual AV switch 4:1 Manueller AV-Umschalter 4:1 - Video and stereo audio signal switching from four sources to one output
- Switching via durable keyboard-style buttons
- Active channel indication via control LED
- Block terminals for remote control
- NTSC and PAL compatible
- High quality gold-plated RCA connectors
- Super compact metal housing
| Power supply: | 12-24 V DC 100 mA | | Power connection: | Mains input via screw terminal
Mains input via Coaxial power connector (M) mounting version | | Frequency range: | 10 - 10000000 Hz | | S/N ratio: | >-95 dB | | THD: | <0,01 % at 1 kHz | | Dimensions: | Width: 14,6 cm
Depth: 9 cm
Height: 4,2 cm | | Weight: | 440 g | | Video: | | | 4 x inputs: | 1 Vpp/ 75 ohms, composite RCA | | 1 x outputs: | 1 Vpp/ 75 ohms, composite RCA | | Off attenuation: | >78 dB | | Differential gain: | 0.1% | | Differential phase: | <0.3° | | Audio: | | | 4 x inputs: | 10 kohms, stereo RCA | | 1 x output: | 75 ohms, stereo RCA | | Gain: | nominal 0 dB | | Input level: | -10 dBV nominal | | Headroom: | >20 dB/ -10 dBV | | Off attenuation | >74 dB | | Crosstalk: | blow noise floor (inputs terminated) |
 | | | | |
