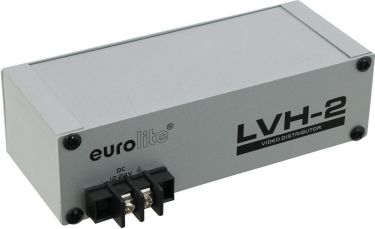

Video distribution amplifier 1:4 Video Verteiler-Verstärker 1:4 - Distributes 1 input to 4 outputs
- 1 parallel output for feed-through of the input signal
- 75 ohms input and outputs via BNC plugs
- Adjustable gain amplification
- 10 MHz bandwidth
- 1 V video signal indicator
- 12-24 V DC power supply via block terminals (PSU not included)
| Power supply: | 12-24V DC 60 mA | | Frequency range: | 10 - 10000000 Hz | | S/N ratio: | >70 dB | | Gain: | 0 dB to +6 dB | | Dimensions: | Width: 14.6 cm Depth: 8.7 cm Height: 4.2 cm | | Weight: | 0.37 kg | | 1 x video input: | 1 Vpp/ 1 kohms (bridged), 75 ohms (terminated), BNC | | 5 x video outputs: | 1 Vpp/ 75 ohms, BNC (1 feed-through output, 4 amplified outputs) | | Output isolation: | >40 dB | | Differential gain: | 0.1% | | Differential phase: | 0.1 degree |
 |
