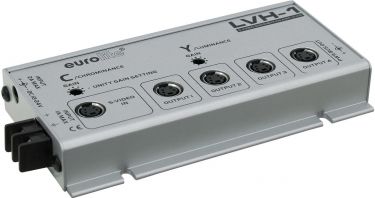

S-video distribution amplifier 1:4 S-Video Verteilverstärker 1:4 - S-Video (Y-C) distribution
- Four separate outputs
- Adjustable gain for each component
- 75 ohms input and outputs via mini-DIN-4 plugs
- Wide bandwidth - flat to 10 MHz
- Super compact metal housing
- 12-24 V DC power supply via block terminals or power jack (PSU not included in the delivery)
- Feed-through output allows to power another LVH-1
- Daisy-chain connection possible
- Wall mounting
| Power supply: | 12-49V DC 75 mA | | Power connection: | Mains input via screw terminal Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (optional) | | Frequency range: | 10 - 10000000 Hz | | S/N ratio: | >75 dB | | Gain: | 0 dB to +6 dB | | Type of installation: | Wall mounting | | Dimensions: | Width: 16.4 cm Depth: 8.3 cm Height: 2.3 cm | | Weight: | 0.32 kg | | 1 x S-video input: | 1 Vpp/ 75 ohms, 4-pin mini-DIN | | 4 x S-video outputs: | 1 Vpp/ 75 ohms, 4-pin mini-DIN | | Output isolation: | >45 dB | | Differential gain: | 0.1% | | Differential phase: | 0.1 degree |
|
