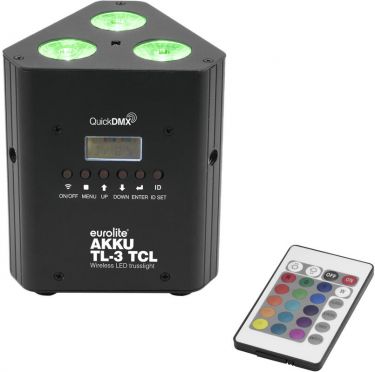

Spot for lighting within trussing, 3 x 3 W 3in1 LED, QuickDMX transceiver
Truss-Innenlicht mit 3 x 3-W-3in1-LED mit QuickDMX-Transceiver
Compact and bright
Ideal for ALUTRUSS DECOLOCK DQ3 3-point system
Integrated QuickDMX transceiver for wireless DMX control
Threaded inserts for suspended installation
Cordless, flexible and versatile
Battery operation up to 16h depending on program used
3 powerful LEDs 3 W SMD 8072 3in1 TCL RGB (homogenous color mix)
Dimmer electronic; color blend stepless; color change adjustable; Dimmer speed (step response) adjustable
Strobe effect
The device is cooled by passive convection cooling
Control via DMX; stand-alone; QuickDMX; IR remote control; sound to light via microphone
Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Flicker-free
With a beam angle of 11°
LCD display
3 x rubber feet
Mains input and output for power linking up to 8 units
For application areas such as: Wedding/gala/events; mobile use; stage; mobile djs / entertainer
Silent operation
Application possibility: Standing; suspended
1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x declaration of conformity
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
25 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Battery/battery pack Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length:
Approx. 1.2 m
Power output:
1 x IEC connector (F) mounting version
Fuse:
5 x 20 mm, F 5 A
Battery pack type:
1 x lithium ion 11.1 V, 4400 mAh, 48.84 Wh
Battery pack:
Battery operation up to 16h depending on program used Recharging time 3h
Lamp type:
LED lamp
LED type:
3 x 3 W SMD 8072 3in1 TCL RGB (homogenous color mix)
Flash rate:
0 - 23 Hz
DMX channels:
3; 5; 8
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
DMX; stand-alone; QuickDMX; IR remote control; sound to light via microphone
Preprogrammed in:
Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:
Flicker-free
Carrier frequency:
2.4 GHz
Beam angle:
11°
Beam angle (1/2 peak):
11°
Beam angle (1/10 peak):
24°
Housing color:
Black
Attachment system:
M10 thread
Display type:
LCD display
Transport aid:
3 x rubber feet
Dimensions:
Width: 12.1 cm Depth: 10.8 cm Height: 14.5 cm
Weight:
1.27 kg
Noise classification:
Class 0 (no noise at all)
Remote control
Battery:
1 x button cell 3.0 V CR2032 lithium manganese built-in
