 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite Set QuickDMX 1x Transmitter + 2x Receiver 10A14L83 | 20000027
Delivery time: 4-8 workdays. | |
| |

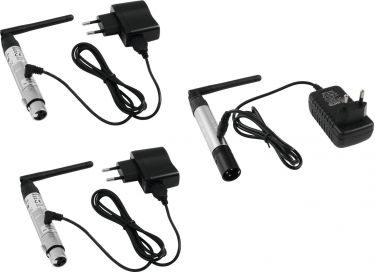

| | Wireless DMX transmitter with 2 compact wireless DMX receivers - User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x USB cable
- User-friendly 3-pin XLR adapter (female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can receive and process up to 512 DMX channels
- Control via QuickDMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x USB cable
| Weight: | 0.47 kg | | EUROLITE QuickDMX Wireless Transmitter | | | Power supply: | 100-240 V AC, 50/60 Hz 5V DC 1000 mA | | IP classification: | IP20 | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) | | DMX channels: | Output 512 | | DMX input: | 1 x 3-pin XLR (M) | | Control: | QuickDMX; DMX; plug and play | | Range: | Range up to 400m | | Carrier frequency: | 2.4 GHz | | Parallel mode: | Max. 6 transmitter | | RF power output: | 19 dBm | | Modulation: | GFSK | | Color: | Silver | | Dimensions: | Length: 21.2 cm Diameter: Ø 1.8 cm | | Weight: | 0.15 kg | | EUROLITE QuickDMX Wireless Receiver | | | DMX channels: | Input 512 | | DMX output: | 3-pin XLR (F) | | Control: | QuickDMX; plug and play | | Weight: | 0.16 kg |
| | | | |
