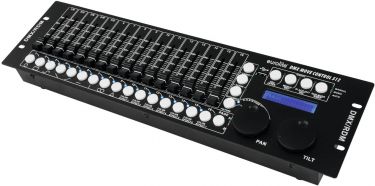

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite DMX Move Controller 512 10A24B83 | 70064515
 |  In stock
Delivery time: 1 - 3 workdays. |
Delivery time: 1 - 3 workdays. | |
| |
| | Controller with color & motion effects (28 devices, 18 control channels each) Controller mit Farb- & Bewegungs-Effekten (28 Geräte, jeweils max. 18 Kanäle) - DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
- For 28 fixtures with 18 control channels each
- USB port for storing program data
- Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
- Manual, time-controlled or sound-controlled chase running mode
- 2 DMX fixture levels can be controlled, each with up to 18 channels
- 16 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Can transmit up to 512 DMX channels
- (19) 48.3 cm rack installation 3 U
- Programmable 32 scenes/chases each with 600 cues
- Control via DMX; RDM
- Monochrome LCD display
- Firmware can be updated
- Desktop console housing
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer
- Silent operation
- 1 x controller, 1 x user manual, 1 x external mains adapter
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 2.70 W | | IP classification: | IP20 | | Protection class: | Protection class III | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Programs: | Programmable 32 scenes/chases each with 600 cues | | DMX channels: | Output 512 | | DMX output: | 1 x 3-pin XLR (F) mounting version | | Control: | DMX; RDM | | Housing color: | Black | | Display type: | Monochrome LCD display | | Available storage media: | USB devices (FAT 32) | | USB port: | Type A | | PC connect: | , firmware can be updated | | Housing design: | (19") 48.3 cm rack installation 3 U Desktop console housing | | Dimensions: | Width: 48.3 cm Depth: 13 cm Height: 8.9 cm | | Weight: | 2.39 kg | | Noise classification: | Class 0 (no noise at all) |


| | |
