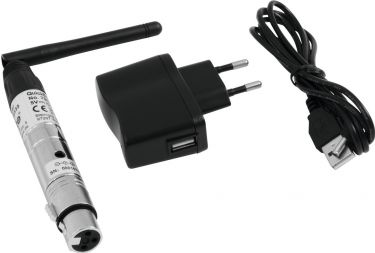

User-friendly 3-pin XLR plug (female) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
1 to 512 QuickDMX receivers can be controlled by each transmitter
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
LED indication for functions
Transceiver, to be used as transmitter or receiver
Operation via included power adapter
2.4 GHz - license-free worldwide
Can receive and process up to 512 DMX channels
Controlling by QuickDMX built-in
Use a operating range up to 400m
Power supply:
100-240 V AC, 50/60 Hz
IP classification:
IP20
Power connection:
Mains input via Coaxial power connector (M) power supply cord with AC adapter (provided)
