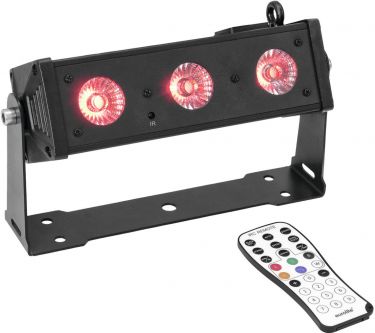

Compact (26 cm) bar with 3 x 12 W 6in1 LED and RGBWA+UV color mixing
Kompakt (26 cm) bar med 3 x 12 W 6-i-1 LED med RGBAW + UV farveblanding
3 powerful LEDs 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
Strobe effect; UV effect
Integrated show programs
Direct color selection for 19 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function
Preprogrammed in EASY SHOW 3; EASY SHOW 2; Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; Colorchief
Flicker-free
With a beam angle of 20°
With mounting bracket
4 digit 7-segment LED display
For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; small rental
Silent operation
Application possibility: Suspended; wall mounting
1 x light effect, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
12 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Fuse:
5 x 20 mm, T 0.5 A fuse replaceable
Lamp type:
LED lamp
LED type:
3 x 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
2; 3; 4; 6; 10
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function
Preprogrammed in:
EASY SHOW 3; EASY SHOW 2; Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:
Flicker-free
Beam angle:
20°
Beam angle (1/2 peak):
20°
Beam angle (1/10 peak):
40°
Wavelength:
Ultra violet (UV) 400 nm
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Material:
Aluminum casting; metal; plastic hard
Dimensions:
Length: 26.5 cm Depth: 8.7 cm Height: 12.9 cm
Weight:
1.13 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Mounting bracket
Diameter mounting holes:
1 x Ø11mm; 4 x Ø8mm; 2 x Ø5mm
Material:
Metal, 2 mm
Power cord
Cable construction:
3 x 0.75 mm² H05VV-F
Cable length:
Approx. 1.2 m
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
