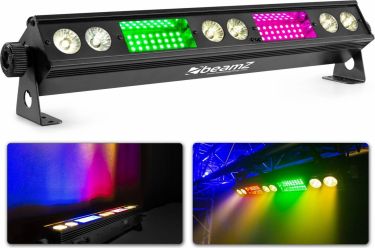

The LSB340 is a 2-in-1 fixture equipped with 6x 3W warm white LEDs in combination with 54x RGB SMD LEDs. This combination ensures high light intensity and optimal colour mixing. The device is able to operate in modes such as DMX, stand alone, sound activation and master/slave. Comes with IR remote controller, strobe, speed, flash, dimming modes and has several built-in programs triggered by music. Units can be simply linked together (daisy chain) and mounted in various truss structures or easy use as a stand-alone effect.
Product colour
Black
Light source
Single colour LED
Colours
Warm White
LED power (single LED)
3W
Quantity of LEDs
6
Quantity of strobe LEDs
54
Flash rate per second
1 - 20Hz
Modes
Automatic programs, DMX, Master/Slave
DMX connection
3-pin XLR
Daisy chain
Yes (max. 6 bars)
IP rating
IP20
Power plug
IEC
Power consumption
0.27-0.14A
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
570 x 70 x 110mm
Weight (kg)
1,70
Included accessories
Remote control (wireless), Mounting bracket, Power cable
Manual – LSB340 Multi Effect LED Bar RGB
