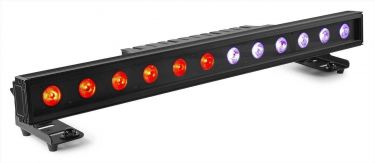

The LCB1215IP LED bar features 12x 15W 6-in-1 LEDs that ensures high light intensity and optimal colour mixing. This device is able to operate both indoor and outdoor, can be used in different control modes such as DMX, standalone and master/slave. Comes with strobe, chase, dimming and fading modes and has various built-in automatic programs. Units can be simply linked together in daisy chain. Diffusion lenses are also available which can be used to turn the focused beams into a softer wash effect- reducing dazzle.
12x 15W 6-in1 LEDs
RGBAW+Lime colour mixing
Die-cast aluminium housing
Single Pixel Control
Noiseless and flicker-free operation
Waterproof IP65 for outdoor use
9 Different DMX modes
DMX, Stand-alone or master/slave mode
Auto mode with adjustable speed
RDM Function
4 selectable dimmer curves
DMX in/output via 3-pin XLR
Control panel with LCD display
Key-lock function
Including brackets with Quicklock
Product colour
Black
Light source
6-in-1 LED
Colours
Red, Green, Blue, Amber, White, Lime
LED power (single LED)
15W
Quantity of LEDs
12
Beam angle
21° - 51°
Illuminance
13.000lx @ 1m
Flash rate per second
0 - 20Hz
Modes
Automatic programs, DMX, Master/Slave
DMX channels
2, 8, 11, 38, 41, 74, 77
DMX connection
3-pin XLR
Daisy chain
Yes (max. 6 bars)
IP rating
IP65
Cooling
Fan
Display
LCD
Power plug
P-Con TR1
Power consumption
1.12 - 2.27A
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
1000 x 90 x 205mm
Weight (kg)
10,50
Included accessories
Mounting bracket
Bundle no.: 10107281
Set consisting of: 4 x LCB1215IP LED Bar IP65 12x 15W 6-in-1 LEDs 1 x FCLCB12 Flightcase for 4x LCB1215IP Led Bar
