 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite Set 4x LED BAR-12 QCL RGB+UV Bar + Case 10A81F38
Delivery time: 4-8 workdays. | |
| |

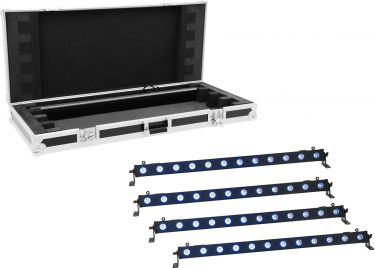

| | 4x light effect bar (1 m) with RGB+UV color mixing including flightcase - 12 powerful LEDs 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 20 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 3; Colorchief
- Flicker-free
- With a beam angle of 20°
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; small rental
- Silent operation
- Application possibility: Suspended; wall mounting
- M8 thread
- 1 x bar, 1 x power cord, 2 x mounting bracket, 2 x screw, 2 x washer, 1 x user manual
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
- Aluminum profile frames 30mm with rounded edges
- Rugged carrying handle
- 3 chrome tip-over locks
- 2 high-quality butterfly locks
- For further information about this product, please refer to the Data Sheet under Downloads
| Weight: | 22.30 kg | | EUROLITE LED BAR-12 QCL RGB+UV Bar | | | Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 25 W | | IP classification: | IP20 | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included | | Power output: | 1 x IEC connector (F) mounting version | | Lamp type: | LED lamp | | LED type: | 12 x 4 W high-power 4in1 QCL RGB/UV (homogenous color mix) | | Flash rate: | 0 - 20 Hz | | DMX channels: | 2; 4; 5; 6; 9 | | DMX input: | 3-pin XLR (M) mounting version | | DMX output: | 3-pin XLR (F) mounting version | | Cooling: | Passive convection cooling | | Control: | Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) | | Fixtures available for: | LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief | | Projection: | Flicker-free | | Beam angle: | 20° | | Beam angle (1/2 peak): | 20° | | Beam angle (1/10 peak): | 33° | | Wavelength: | Ultra violet (UV) 399 nm | | Housing color: | Black | | Attachment system: | Mounting bracket | | Display type: | 4 digit 7-segment LED display | | Material: | Aluminum; metal | | Dimensions: | Length: 100 cm Depth: 6.5 cm Height: 10.3 cm | | Weight: | 2.85 kg | | Noise classification: | Class 0 (no noise at all) | | Photobiological safety: | Risk Group 0 | | Power cord | | | Cable construction: | 3 x 0.75 mm² H05VV-F | | Cable length: | 1.2 m | | Mounting bracket | | | Diameter mounting holes: | 1 x Ø20mm; 1 x Ø11mm; 2 x Ø7mm | | Material: | Metal, 2 mm | | Screw | | | Thread: | M8 thread x 16 mm | | Washer | | | Material: | Rubber | | Dimensions: | Height: 0.3 cm Diameter: Ø 2 cm | | Legal specifications | | | Special product: | Not designed for household room illumination | | Intended use: | Show effect lighting | | ROADINGER Flightcase EC-B252 4x LED BAR-252 RGB | | | Maximum load: | 25 kg | | Aluminum profile frames: | 30 mm | | Carrying handle: | 1 pc/pcs | | Stop hinge: | 3 pc/pcs | | Lock: | Butterfly lock: 2 pc/pcs | | Material: | Plywood multi-layer glued, 7 mm | | Color: | Black, laminated | | Inside dimensions: | 108 cm x 44 cm x 7.5 cm | | Device compartment: | 108 cm x 6.5 cm x 7.5 cm | | Dimensions: | Width: 117 cm Depth: 48 cm Height: 17 cm | | Weight: | 10.90 kg |
| | |
| | |
