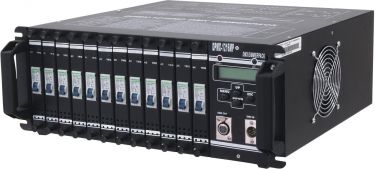

12 x 16A dimmer, service friendly modules, two 16-pin multipin sockets 12 x 16-A-Dimmer, servicefreundliche Module, zwei 16-pol.-Multipin-Ausgänge  - 12-channel dimmer pack with up to 16 A output per channel
 - Modular design of the individual dimmer modules for quick and easy change
 - 3-phase or 1-phase power supply
 - Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
 - Curve function for selection of different fade modes
 - Dim or switch option assignable to each channel
 - DMX Fail function: automatic digital input check to detect DMX signal errors
 - Manual mode for dimming capability without an external lighting controller
 - Synchronization of several devices possible via DMX
 - Automatic circuit breaker per channel (type C)
 - Channel outputs on the rear panel via industrial sockets
 - Only for professional use
 - 12 integrated show programs
 - Preprogrammed 12 scenes/chases
 - The device is cooled by cooling fan
 - Control via stand-alone; DMX
 - LCD display
 - (19) 48.3 cm rack installation 4 U
 - For application areas such as: Trade fair and shop fitting; stage; theater; rental
 - Very quiet working noise
 - 1 x device, 1 x user manual
   | Power supply: | 380-400V AC, 50Hz |  | Output power: | Max. 3680 W per channal Max. 43470 W |  | Output current: | Max. 189 A |  | Power connection: | Mains input via screw terminal |  | Power output: | 2 x 16-pin multi-pin (F) fitted version |  | Power output fuse per channel: | C 16 A fuse resettable |  | Programs: | Preprogrammed 12 scenes/chases |  | DMX channels: | 12 |  | DMX input: | 1 x 3-pin XLR (M) mounting version |  | DMX output: | 1 x 3-pin XLR (F) mounting version |  | Cooling: | Cooling fan |  | Control: | Stand-alone; DMX |  | Control channels: | 12 |  | Display type: | LCD display |  | Color: | Black |  | Housing design: | (19") 48.3 cm rack installation 4 U |  | Dimensions: | Width: 48.3 cm Depth: 48.5 cm Height: 17.8 cm |  | Weight: | 17.95 kg |  | Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
     |
