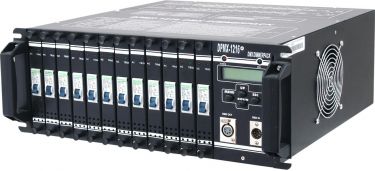

12 x 16A dimmer, service friendly modules, connection via terminal block 12 x 16-A-Dimmer, servicefreundliche Module, Anschluss über Klemmen - 12-channel dimmer pack with up to 16 A output per channel
- Modular design of the individual dimmer modules for quick and easy change
- 3-phase or 1-phase power supply
- Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
- Curve function for selection of different fade modes
- Dim or switch option assignable to each channel
- DMX Fail function: automatic digital input check to detect DMX signal errors
- Manual mode for dimming capability without an external lighting controller
- Synchronization of several devices possible via DMX
- Automatic circuit breaker per channel (type C)
- Channel-outputs on the rearpanel via pole connectors
- Only for professional use
- 12 integrated show programs
- Preprogrammed 12 scenes/chases
- The device is cooled by cooling fan
- Control via stand-alone; DMX
- LCD display
- (19) 48.3 cm rack installation 4 U
- For application areas such as: Trade fair and shop fitting; stage; theater; rental
- Very quiet working noise
- 1 x device, 1 x user manual
| Power supply: | 230/380 V AC, 50 Hz | | Protection class: | Protection class I | | Output power: | Max. 43470 W Max. 3680 W per channal | | Output current: | Max. 189 A | | Power connection: | Mains input via screw terminal | | Power output: | Screw terminal | | Power output fuse per channel: | C 16 A fuse resettable | | Programs: | Preprogrammed 12 scenes/chases | | DMX channels: | 12 | | DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version | | DMX output: | 1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version | | Cooling: | Cooling fan | | Control: | Stand-alone; DMX | | Control channels: | 12 | | Display type: | LCD display | | Color: | Black | | Housing design: | (19") 48.3 cm rack installation 4 U | | Dimensions: | Width: 48.3 cm Depth: 48.5 cm Height: 17.8 cm | | Weight: | 18.20 kg | | Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
   |
