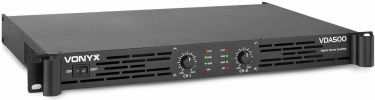

Vonyx latest amplifier design! The VDA-series are super compact stereo power amplifiers in a 1U rack-mountable housing. Silent operation and a low weight which make this series suitable for both fixed installations and mobile applications. These Class D amplifiers will give you the sound output you need in fixed installations in small to medium venues, for musicians or in your studio. - 500W Class-D amplifier
- Compact lightweight design
- XLR and 6.3mm Jack Combi inputs
- NL-4 speaker outputs
- LED VU for indicating overload
- Suitable for 19 rack mounting (1U)
| Product colour | Black | | Output channels | 2 | | Output power: @ 4 Ohm per channel | 250W | | Output power: @ 8 Ohm per channel | 180W | | Impedance | 4 - 8 Ohm | | Input connections | 6.3mm Jack, XLR (3-pin) | | Output connections | NL-4 | | Frequency response | 20Hz - 20.000Hz | | THD | <0,5% | | Signal-to-noise ratio | >95dB | | Distortion | >98dB | | Input sensitivity line | 775mV | | Input impedance | 10 kOhm | | Power supply | 220-240VAC 50Hz | | Dimensions (L x W x H) | 290 x 483 x 55mm (45 without feet) | | Is the item 19"? | Yes | | Weight (kg) | 2,60 |
 pdf


 |
