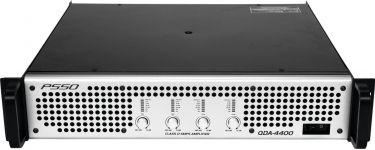

Class D multi-channel PA amplifier with SMPS, 4 x 1100 W RMS (4 ohms), 4 x 650 W RMS (8 ohms)
Verstärker mit Schaltnetzteil, 4 x 1100 W / 4 Ohm, 4 x 650 W / 8 Ohm
4-channel PA amplifier with class D circuitry
Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
3 operating modes can be selected (stereo, parallel or bridged)
Level control per channel
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
(19) 48.3 cm rack installation 2 U
Highly efficient air flow from front to rear
The device is cooled by temperature-controlled fan
For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
1 x amplifier, 1 x power cord, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
830 W 1/8 power
Protection class:
Protection class I
Output power:
4 x 1100 W RMS (4 ohms) 4 x 650 W RMS (8 ohms) 2 x 2000 W RMS bridged (8 ohms)
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>100 dB
THD:
<0.1 % at 1 kHz
Cooling:
2 x temperature-controlled fan , air flow from front to rear
Impedance:
Input: 20 kOhm , bal. Input: 10 kOhm , unbal.
Gain:
39.9 dB
Housing color:
Black
Circuitry:
Class D
Slew rate:
>10 V/µs
Damping factor:
>500
Crosstalk:
>65 dB
Control elements:
Power switch, mode switch (stereo/parallel/bridged), level control per channel, Input sensitivity switch
