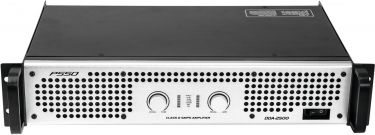

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | PSSO DDA-2500 Amplifier 10A13H05 | 10451685
Delivery time: 4-8 workdays. | |
| |
| | Class D stereo PA amplifier with SMPS, 2 x 1250 W RMS (4 ohms), 2 x 700 W RMS (8 ohms) Stereo-PA-Verstärker mit Schaltnetzteil, 2 x 1250 W / 4 Ohm - Stereo PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
- Limiter and speaker switch-on delay
- 3 operating modes can be selected (stereo, parallel or bridged)
- 2 calibrated level controls for precise level adjustment
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- (19) 48.3 cm rack installation 2 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
- 1 x amplifier, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 200 W 1/8 power | | Protection class: | Protection class I | | Output power: | 2 x 1250 W RMS (4 ohms) 2 x 700 W RMS (8 ohms) 1 x 2500 W RMS bridged (8 ohms) | | Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | | Cable length: | 1.8 m detachable | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >100 dB | | THD: | <0.15 % at 1 kHz | | Cooling: | 2 x temperature-controlled fan , air flow from front to rear | | Impedance: | Input: 10 kOhm , unbal. Input: 20 kOhm , bal. | | Gain: | 39.7 dB | | Circuitry: | Class D | | Slew rate: | >10 V/µs | | Damping factor: | >500 | | Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch | | Controls: | Softstart; overheat; overload; short-circuit; limiter; VHF; DC voltage; progressive volume | | Status LED: | Power, level meter, clip, protect | | Connections: | Input: line via 2 x 3-pin XLR Output: line via 2 x 3-pin XLR Output: speaker via 2 x speaker built-in socket (F) | | Input sensitivity: | 0.775 V; 1.0 V; 1.81 V , switchable; 32 dB; 37 dB; 39.3 dB , switchable | | Color: | Black | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48.3 cm Depth: 30.7 cm Height: 8.9 cm | | Weight: | 6.25 kg |

| | | | |
