 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Omnitronic LH-053 DI Box passive 10A13E11 | 10355053
Delivery time: 4-8 workdays. | |
| |

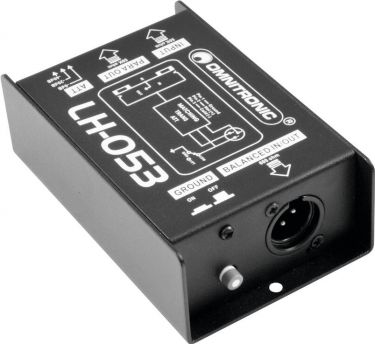

| | Passive 1-channel DI box, black Passive 1-Kanal-DI-Box, Schwarz - 1 high-impedance signal input, 6.3 mm jack
- 1 low-impedance XLR output
- 6.35 mm jack input, and output
- Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Rugged black metal housing
- For application areas such as: Installation; mobile use; mobile djs / entertainer
- 1 x device, 1 x user manual
| Frequency range: | 15 - 30000 Hz | | S/N ratio: | >95 dB | | Impedance: | Input: 50 kOhm Output: 600 Ohm | | Input attenuation: | 0 dB, -20 dB, -40 dB; switchable | | Control elements: | Groundlift selector, Input sensitivity switch | | Connections: | Input: 1 x 6.3 mm plug (unbal.) Link: 1 x 6.3 mm plug (unbal.) Output: line via 1 x 3-pin XLR | | Color: | Black | | Dimensions: | Width: 12.7 cm Depth: 7.4 cm Height: 4.5 cm | | Weight: | 0.44 kg |
  | | |
