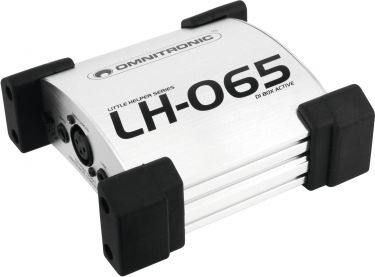

 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Omnitronic LH-065 Active DI Box 10A22G93 | 10355065
 |  På lager
Leveringstid: 2 til 5 dager. |
Leveringstid: 2 til 5 dager. | |
| |
| | 1-channel DI box, active 1-Kanal-DI-Box, aktiv - 1 high-impedance signal input via XLR or 6.3 mm jack connectors
- 1 low-impedance XLR output
- 6.35 mm jack input, and output
- Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Cables can be routed under the housing
- 1 x device, 1 x user manual, 1 x battery
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Battery: | 1 x 9.0 V E block 6F22 zinc carbon included | | Frequency range: | 10 - 30000 Hz | | THD: | <0,5 % at 1 kHz | | Impedance: | Input: 470 kOhm
Output: 600 Ohm | | Input attenuation: | 0 dB, -20 dB, -40 dB; switchable | | Control elements: | Groundlift selector | | Connections: | Input: 1 x 3-pin XLR
Input: 1 x 6.3 mm plug (unbal.)
Link: 1 x 6.3 mm plug (unbal.)
Output: line via 1 x 3-pin XLR | | Max. level: | Output: +6 dBu | | Dimensions: | Width: 15 cm
Depth: 13 cm
Height: 6 cm | | Weight: | 540 g |
   | | | | |
