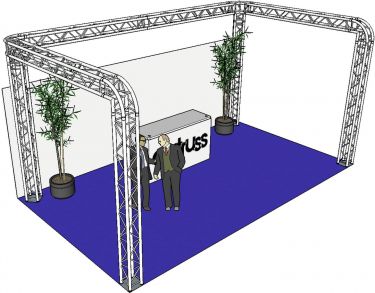

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Alutruss Truss set QUADLOCK 6082R U-Figure 7x4x3.5m (WxDxH) 10A22E49 | 20000384
 |  In stock
Delivery time: 1 - 3 workdays. |
Delivery time: 1 - 3 workdays. | |
| |
| | Three-sided Quadlock exhibition stand - Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Low weight
- Distance center - center: 240 mm
- Easy installation
- Trusspipe: 50 mm
- TÜV Süd certified
- For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
- For further information about this product, please refer to the Data Sheet under Downloads
- 1 x connection set
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Low weight
- Distance center - center: 240 mm
- Easy installation
- Trusspipe: 50 mm
- Made in Europe
- For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
- 1 x connection set
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Low weight
- Distance center - center: 240 mm
- Easy installation
- Trusspipe: 50 mm
- Made in Europe
- For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
- 2 x connection set
- Accessories for the robust truss system with QUICK-LOCK
- For use with TRI/QUAD system
- Trusspipe: 50 mm
- Made in Europe
- 2 x splint, 2 x bolt
- Easy installation
- The article is delivered pre-assembled
- Trusspipe: 50 mm
- Made in Europe
- Application possibility: Standing
- M10 thread
- 1 x plate, 4 x half cone
| Weight: | 147,44 kg | | ALUTRUSS QUADLOCK 6082-3000 4-way Cross Beam | | | Setup: | Easy installation | | Trusspipe: | 50 mm x 2 mm | | Welding technique: | TIG-welding | | Welding material: | AlMg 5 | | Alloy: | AIMgSi1 T6 | | Color: | Alu colored | | Strut diameter x thickness: | 16 x 2mm | | Dimensions: | Length: 300 cm Width: 29 cm Height: 29 cm | | Weight: | 14,2 kg | | ALUTRUSS QUADLOCK 6082C-21R 2-way Corner 90° | | | Dimensions: | Length: 50 cm Width: 50 cm Height: 29 cm | | Weight: | 5,30 kg | | ALUTRUSS QUADLOCK 6082C-30R 3-way Corner 90° | | | Dimensions: | Length: 50 cm Width: 50 cm Height: 50 cm | | Weight: | 8,15 kg | | ALUTRUSS QUICK-LOCK Spare Pivot with Pin | | | Trusspipe: | 50 mm | | Weight: | 0,09 kg | | ALUTRUSS QUADLOCK End Plate QQGP-Male M-10 | | | Material: | Aluminum | | Dimensions: | Length: 30,7 cm Width: 30,7 cm Height: 5 cm | | Weight: | 1,55 kg | | Half cone | | | Thread: | M10 thread |
   | | |
| | |
