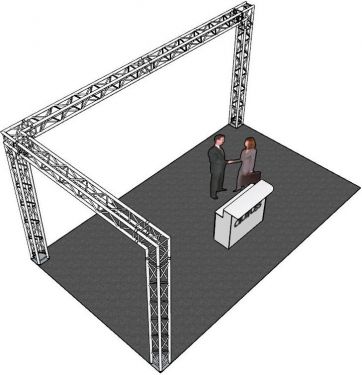

Alutruss Truss set QUADLOCK 6082 L-Figure 7x4x3.5m (WxDxH)

10A22E47 | 20000380

~~61.519,00NOK~~ 57.379,00NOK

The price includes 25% Danish VAT

In stock
Delivery time: 1 - 3 workdays.

Delivery time: 1 - 3 workdays.

Strong EN-AW 6082 alloy for high loads
High-quality aluminum-tubes with 50 mm in diameter
Low weight
Distance center - center: 240 mm
Easy installation
Trusspipe: 50 mm
TÜV Süd certified
For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
For further information about this product, please refer to the Data Sheet under Downloads
1 x connection set
Strong EN-AW 6082 alloy for high loads
High-quality aluminum-tubes with 50 mm in diameter
Low weight
Distance center - center: 240 mm
Easy installation
Trusspipe: 50 mm
Made in Europe
For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
1 x connection set
Strong EN-AW 6082 alloy for high loads
High-quality aluminum-tubes with 50 mm in diameter
Low weight
Distance center - center: 240 mm
Easy installation
Trusspipe: 50 mm
Made in Europe
For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
2 x connection set
Accessories for the robust truss system with QUICK-LOCK
For use with TRI/QUAD system
Trusspipe: 50 mm
Made in Europe
2 x splint, 2 x bolt
Easy installation
The article is delivered pre-assembled
Trusspipe: 50 mm
Made in Europe
Application possibility: Standing
M10 thread
1 x plate, 4 x half cone

Weight:	109.36 kg
ALUTRUSS QUADLOCK 6082-3000 4-way Cross Beam
Setup:	Easy installation
Trusspipe:	50 mm x 2 mm
Welding technique:	TIG-welding
Welding material:	AlMg 5
Alloy:	AIMgSi1 T6
Color:	Alu colored
Strut diameter x thickness:	16 x 2mm
Dimensions:	Length: 300 cm Width: 29 cm Height: 29 cm
Weight:	14.2 kg
ALUTRUSS QUADLOCK 6082C-21 2-way Corner 90°
Dimensions:	Length: 50 cm Width: 50 cm Height: 29 cm
Weight:	5.50 kg
ALUTRUSS QUADLOCK 6082L-30 3-way Corner 90°
Dimensions:	Length: 50 cm Width: 50 cm Height: 50 cm
Weight:	7.95 kg
ALUTRUSS QUICK-LOCK Spare Pivot with Pin
Trusspipe:	50 mm
Weight:	0.09 kg
ALUTRUSS QUADLOCK End Plate QQGP-Male M-10
Material:	Aluminum
Dimensions:	Length: 30.7 cm Width: 30.7 cm Height: 5 cm
Weight:	1.55 kg
Half cone
Thread:	M10 thread
