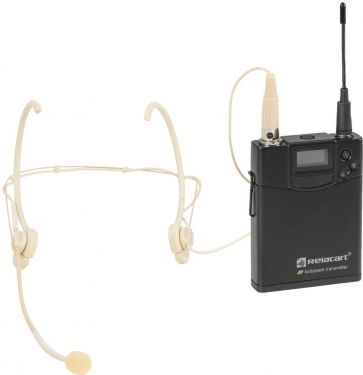

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Relacart UT-222 Bodypack with HM-600S Headset 10B01D01
Delivery time: 4-8 workdays. | |
| |
| | Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz - Durable aluminum alloy housing, applicable for touring
- Pilot frequency squelch technology delete wireless RF interference
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Adjustable input gain
- RF output power Hi/Low adjustable
- Lock function for prevents undesired changes to settings
- Up to 9 transmitters can be operated in parallel without interference
- Operating range up to 80m
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- OLED display
- Polar pattern: Omnidirectional
- For further information about this product, please refer to the Data Sheet under Downloads
- 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
| Parallel mode: | Max. 9 transmitter | | Weight: | 0.21 kg | | Transmitter | | | Type: | Bodypack with microphone | | Power supply: | 3V DC | | Power connection: | Battery/battery pack | | Battery: | 2 x Mignon (AA) (not included) | | Gain: | 0 dB -6 dB -12 dB | | Range: | Range up to 80m | | Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz | | Switching bandwidth: | 11 MHz | | RF power output: | UHF 823 - 832 MHz: 10 mW (LO); 40 mW (HI); UHF 863 - 865 MHz: 5 mW (LO); 10 mW (HI) | | Modulation: | FM | | Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each | | Display type: | OLED display | | Control elements: | Transmitter power switch (high-low) | | Connections: | Output: Mini XLR (M) 4-pin mounting version | | Switch: | On/off/mute switch | | Material: | Aluminum | | Color: | Black | | Dimensions: | Width: 6.6 cm Depth: 2.3 cm Height: 8.4 cm | | Weight: | 0.174 kg | | Microphone | | | Type: | Headset microphone | | Power supply: | 2-10V DC | | Cable length: | 1.2 m | | Capsule type: | Condenser Size: Ø 5 mm x 6 mm | | Polar pattern: | Omnidirectional | | Frequency range: | 50 - 18000 Hz | | Sensitivity: | -47 dB | | Impedance: | 1800 Ohm | | Connector type: | Mini XLR (F) 4-pin | | Color: | Skin-colored | | Weight: | 0.028 kg |
  | | | | |
