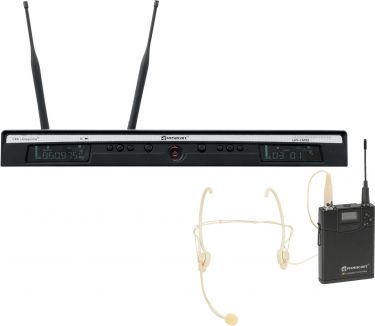

Relacart Set UR-260D Bodypack with HM-600S Headset

10B03C31

7.399,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
DSP programming and management via Ethernet port and intuitively operated PC software
High-quality antenna diversity reception
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 wireless channels is possible without any interference
Pilot frequency squelch technology delete wireless RF interference
Automatic frequency scan (AFS) finds interference-free channels
Easy and error-free synchronization between receiver and transmitter via infrared signal
Multiple units can be linked with network cables
Lock function for prevents undesired changes to settings
2 detachable BNC antennas allow for use with the R-14D antenna divider
Rugged metal housing
Digital signal processor 96kHz, 24 bit
Multicolor LCD display
UHF 863 - 865 MHz License-free and approved in Europe
UHF 823 - 832 MHz License-free and approved in large parts of Europe
Operating range up to 80m
The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
Desktop console housing
(19) 48.3 cm rack installation possible 1 U
1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity
Durable aluminum alloy housing, applicable for touring
Pilot frequency squelch technology delete wireless RF interference
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without any interference
Easy and error-free synchronization between receiver and transmitter via infrared signal
Adjustable input gain
RF output power Hi/Low adjustable
Lock function for prevents undesired changes to settings
OLED display
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Operating range up to 80m
Polar pattern: Omnidirectional
For further information about this product, please refer to the Data Sheet under Downloads
1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity

Weight:	2,61 kg
RELACART UR-260D 2-channel UHF Receiver
Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	Max. 9 W
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:	2
Frequency range:	45 - 18000 Hz
S/N ratio:	>100 dB
THD:	<0,5 % at 1 kHz
Network connection:	Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version
DSP:	Digital signal processor 96kHz, 24 bit
Display type:	Multicolor LCD display
Control elements:	Power switch, groundlift selector, menu, navigation keys
Connections:	Antenna via 2 x BNC (F) 8 V Output: Microphone via 2 x 3-pin XLR (M) mounting version Output: line via 1 x 6.3 mm plug (unbal.)
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:	90 Switchable frequencies In 10 groups with up to 10 preset frequencies each
Modulation:	FM
Frequency stability:	± 0,0005 %
Range:	Range up to 80m
Switching bandwidth:	11 MHz
Diversity:	Antenna diversity
Material:	Metal
Color:	Black
PC connect:	RELACART Magic EQ software via RJ-45 (F) mounting version
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 41 cm Depth: 26 cm Height: 4,3 cm
Weight:	2,40 kg
RELACART UT-222 Bodypack with HM-600S Headset
Weight:	210 g
Transmitter
Type:	Bodypack with microphone
Power supply:	3 V DC
Power connection:	Battery/battery pack
Battery:	2 x Mignon (AA) (not included)
Gain:	0 dB -6 dB -12 dB
Display type:	OLED display
Control elements:	Transmitter power switch (high-low)
Connections:	Output: Mini XLR (M) 4-pin mounting version
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
RF power output:	10 mW (LO); 40 mW (HI)
Switch:	On/off/mute switch
Material:	Aluminum
Dimensions:	Width: 6,6 cm Depth: 2,3 cm Height: 8,4 cm
Weight:	174 g
Microphone
Type:	Headset microphone
Power supply:	2-10 V DC
Cable length:	1,2 m
Capsule type:	Condenser Size: Ø 5 mm x 6 mm
Polar pattern:	Omnidirectional
Frequency range:	50 - 18000 Hz
Sensitivity:	-47 dB
Impedance:	1800 Ohm
Connector type:	Mini XLR (F) 4-pin
Color:	Skin-colored
Weight:	28 g
