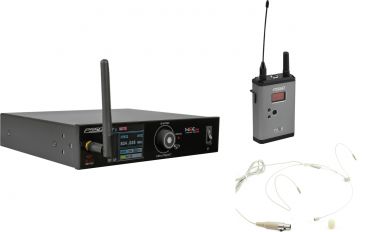

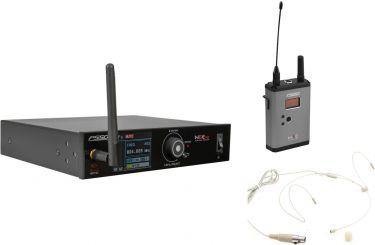

PSSO Set WISE ONE + BP + Headset 823-832/863-865MHz

10A96B33

9.439,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

License-free true diversity wireless receiver incl. pocket transmitter and headset microphone

Professional multifrequency wireless receiver with true diversity reception for stage use
High-grade components and intelligent features ensure best performance and high reliability
Ideal for large multi-channel systems
45 preset channels in 5 channel groups
2.4 GHz iSync - real-time synchronization and monitoring
Automatic frequency setup
Pilot frequency squelch technology delete wireless RF interference
Multifunctional jogdial for menu settings
Lock function for prevents undesired changes to settings
Mic/line selector switch
2 detachable BNC antennas allow for use with external antenna divider
2 receivers can share a single power adapter
(19) 48.3 cm rack installation possible 1 U
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Up to 26 transmitters in 3 bands can be operated in parallel without interference
Multicolor LCD display
Firmware can be updated
Desktop console housing
For application areas such as: Mobile use; stage; theater; rental; sports centres/gyms; concerts/FoH's
1 x receiver, 1 x external mains adapter, 1 x adapter, 3 x antenna, 3 x mounting bracket, 9 x screw, 4 x foot, 1 x jack cable, 1 x adapter cable, 1 x holder, 1 x windshield, 1 x user manual, 1 x declaration of conformity, 2 x battery
2.4 GHz iSync - real-time synchronization and monitoring
Editable user name and user color
RF output switchable
Gain level adjustable
Lock function for prevents undesired changes to settings
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Multicolor LCD display
1 x transmitter, 2 x antenna, 1 x user manual, 1 x declaration of conformity
Polar pattern: Omnidirectional
1 x microphone, 1 x windshield, 1 x fixation clip

Weight:	2.01 kg
PSSO WISE ONE 1-Channel True Diversity Receiver 823-832/863-865MHz
Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12-15V DC 800 mA
Power consumption:	4 W
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:	1
Frequency range:	50 - 20000 Hz
S/N ratio:	>96 dB
THD:	<0.1 % at 1 kHz
Gain:	Microphone -32 dB to +4 dB Output: -32 dB to +4 dB
Range:	Range up to 60m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Diversity:	True diversity
Parallel mode:	Max. 26 transmitter in 3 bands
Modulation:	FM
Frequency selection:	45 switchable frequencies In 5 groups Frequencies automatically scannable
Display type:	Multicolor LCD display
Control elements:	Power switch, groundlift selector, menu, encoder
Connections:	Antenna via 2 x BNC (F) 12-15 V Antenna via 1 x SMA (F) mounting version Output: mic/line via 1 x 3-pin XLR Output: mic/line via 1 x 6.3 mm jack socket (mono) mounting version
Channels:	Microphon chanal: 1 x mono with mic-line switch via XLR or jack
Switch:	Low cut switch
Material:	Metal
Color:	Black
PC connect:	, firmware can be updated
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 21 cm Depth: 27 cm Height: 4.3 cm
Weight:	1.80 kg
PSSO WISE Bodypack 823-832/863-865MHz
Type:	Pocket transmitter
Power supply:	3V DC
Power connection:	Battery/battery pack
Battery:	2 x Mignon (AA) (not included)
Frequency range:	50 - 18000 Hz
Gain:	-32 dB to +4 dB
RF power output:	50 mW (HI); 10 mW (LO)
Frequency selection:	Switchable frequencies
Control elements:	Menu, navigation keys
Connections:	Microphone via 1 x mini XLR (M) 3-pin mounting version 5 V
Color code:	Color indicator and name adjustable
Switch:	On/off switch; mute control
Material:	Aluminum
Color:	Grey
Dimensions:	Width: 7 cm Depth: 3 cm Height: 13 cm
Weight:	0.19 kg
PSSO WISE Headset for Bodypack
Type:	Headset microphone
Power supply:	2-10V DC
Cable length:	1.5 m
Capsule type:	Electret
Polar pattern:	Omnidirectional
Frequency range:	100 - 20000 Hz
S/N ratio:	>58 dB
Sensitivity:	-45 dB
Impedance:	1 kOhm 1000 Ohm
Connections:	Mini XLR (F) 3-pin
Color:	Skin-colored
Dimensions:	Diameter: Ø 0.35 cm
Weight:	0.02 kg
