Omnitronic UHF-600 Bodypack 823-832/863-865 MHz

10B06F29

939,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

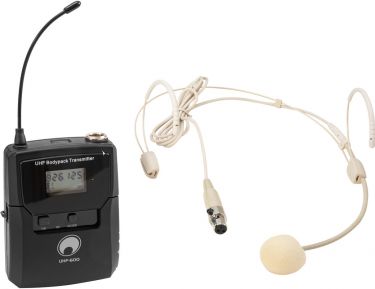

Bodypack transmitter for UHF-600 receivers

Bodypack transmitter with PLL multifrequency transmitter
Easy and error-free synchronization between receiver and transmitter via infrared signal
Gain level adjustable in 4 steps
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Up to 12 transmitters can be operated in parallel without interference
Ultra-low latency
Multicolor LCD display
Charge status indicator
Polar pattern: Cardioid
1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity

Type:	Bodypack with microphone
Power supply:	3V DC 125 mA
Battery:	2 x Mignon (AA) (not included)
Phantom power:	Or 2,4 V DC
Range:	Range up to 60m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Switching bandwidth:	11 MHz
Parallel mode:	Max. 12 transmitter
RF power output:	5 mW (LO); 10 mW (HI)
Latency:	< 3 ms
Modulation:	FM
Housing color:	Black
Display type:	Multicolor LCD display
Display:	Frequency , charge status indicator , Mute , RF signal level; AF audio level , gain
Control elements:	Gain-switch (high-mid-low)
Connections:	Input: microphone via 1 x mini XLR (M) 3-pin mounting version
Switch:	On/off switch; mute control
Material:	Plastic
Color:	Black
Dimensions:	Width: 6,6 cm Depth: 2,8 cm Height: 8,5 cm
Weight:	0,074 kg
Microphone
Type:	Headset microphone
Power supply:	1,5-10V DC
Cable length:	1,0 m
Capsule type:	Condenser
Polar pattern:	Cardioid
Frequency range:	80 - 18000 Hz
Sensitivity:	-53 dB
Impedance:	600 Ohm
Color:	Skin-colored
Weight:	0,028 kg
