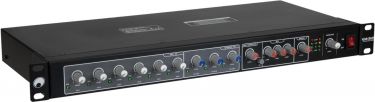

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Omnitronic EM-312 Entertainment Mixer 10A81E01
Delivery time: 4-8 workdays. | |
| |
| | Microphone line mixer, 6 mono channels + 3 stereo channels - 6 mono mic/line input channels (combo jack), switchable
- 3 stereo line input channels (RCA)
- Phantom power can be switched on for each microphone input
- All input channels with separate level controls and signal LED
- Adjustable priority circuit for channel 1
- Balanced stereo XLR outputs and RCA outputs
- Adjustable monitor output
- Adjustable mono line output (6.3 mm jack)
- Master level control, 4-digit stereo LED level meter and 3-band equalizer
- Additional screw terminals for 24 V DC power input
- (19) 48.3 cm rack installation 1 U
- 1 x device, 1 x power cord, 4 x foot, 1 x user manual
| Power supply: | 230 V AC, 50 Hz
Or
24 V DC | | Power consumption: | 12 W | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Mains input via screw terminal | | Frequency range: | 20 - 22000 Hz | | S/N ratio: | >103 dB | | THD: | <0,03 % at 1 kHz | | Phantom power: | 18 V DC or 21 V DC | | Impedance: | Input: mic/line 1,4 kOhm
Input: line 10 kOhm
Output: 120 Ohm | | Control elements: | Power switch | | Status LED: | Power, signal, master level meter, clip | | Connections: | Input: mic/line via 6 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 3 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: mono via 1 x 6.3 mm jack socket (mono) mounting version
Output: rec. via 1 x stereo RCA | | Channels: | Input chanel: 6 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz
Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz
Master output: 1 x stereo via XLR, channel control via Rotary dial
Master output: 1 x mono via Jack, channel control via Rotary dial | | Max. level: | Input: Microphone -19 dBu
Input: line +21 dBu
Output: +21 dBu | | Housing design: | (19") 48.3 cm rack installation 1 U | | Dimensions: | Width: 48,3 cm
Depth: 23 cm
Height: 4,45 cm | | Weight: | 3,04 kg |

   | | | | |
