Delivery time: 4-8 workdays. | |
| |

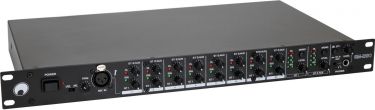

| | 8-channel stereo mixer with 2 adjustable zone outputs, 19" - 1 additional XLR microphone input in channel 1
- Nominal input level switchable between +4dBu and -10 dBV
- Signal and overload indicators in each channel
- 4-digit stereo level meter for each bus output
- (19) 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x RCA cable
| Power supply: | 115/230 V AC, 50/60 Hz | | Power consumption: | 15 W | | Protection class: | Protection class I | | Power connection: | Power supply cord with safety plug (provided) | | Device fuse: | 5 x 20 mm, T 1 A fuse replaceable | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >92 dB line >65 dB microphone | | THD: | Line <0.9 % at 1 kHz | | Gain: | Mic/line 18 dB | | Housing color: | Black | | Control elements: | Groundlift selector | | Status LED: | Power, master level meter, signal, clip | | Connections: | Input: line via 8 x 6.3-mm-jack (bal.) Input: microphone via 1 x 3-pin XLR Output: master via 2 x 6.3-mm-jack (bal.) Output: AUX via 1 x 6.3-mm-jack (bal.) Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version | | Channels: | Input chanel: 1 x mono + stereo with mic-line switch via XLR or jack, channel control via rotary dial, pre-post switch, gain control Input chanel: 7 x stereo via jack, channel control via rotary dial, pre-post switch Master bus input: 2 x stereo via jack, routing master bus switch Master output: 2 x mono + stereo via XLR or RCA, channel control via rotary dial, stereo/mono switch Master bus output: 1 x stereo via jack Headphones output: 1 x stereo via jack, channel control via rotary dial, routing master bus switch | | Housing design: | (19") 48.3 cm rack installation 1 U | | Dimensions: | Width: 48.3 cm Depth: 28.0 cm Height: 4.4 cm | | Weight: | 3.06 kg |

  | | | | |
