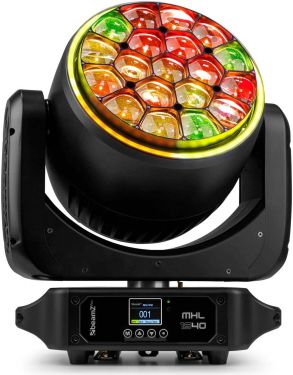

The MHL1940 is a wash moving head with a linear motorized zoom equipped with 19 ultra-bright 40 Watt 4-in-1 LEDs according to the latest technology. This moving head is equipped with unique honeycomb design lenses and each LED can be controlled individually to create amazing effects. (Kaleido effects) It’s also setup with extremely powerful noise-reducing motors, enabling ultra-fast pan and tilt movement while keeping the noise to a bare minimum. Perfectly useable for many events and club installs.
Bee Eye moving head with rotating lenses and zoom
19x 40W 4-in-1 RGBW LEDs
Aura Effect Ring: 48x RGB SMD LEDs
Motorized zoom
26, 38, 102 or 114 DMX channels
CTB & CTO Filter
Pre-programmed macro effects with variable speed
8 Sound mode and 8 auto mode programs
Master/slave synchronization
Sound activated with adjustable sensitivity
Scan position memory
0-100% Smooth linear LED dimmer
Single pixel control
Controle panel with LCD display
DMX in/output via 3/5-pin XLR
Powerconnector input/output
Quick lock omega clamp included
DMX cable included
Powerconnector cable included
Product colour
Black
Colour temperature
2700K - 8000K
Light source
4-in-1 LED
Colours
Red, Green, Blue, White
LED power (single LED)
40W
Quantity of LEDs
19
Beam angle: Min
6°
Beam angle: Max
60°
Zoom
Yes
Illuminance
94.960 lx @ 1m
Head movement: Pan
540°
Head movement: Tilt
270°
Flash rate per second
1 - 25Hz
Modes
Automatic programs, DMX, Master/Slave
Sound to light mode
Yes
DMX channels
26, 38, 102, 114
DMX connection
3-pin XLR, 5-pin XLR
Display
LCD
IP rating
IP20
Cooling
Temperature controlled fan
Power plug
P-Con
Power consumption
2.97A
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
405 x 405 x 412mm
Weight (kg)
16,15
Included accessories
Mounting bracket, Safety cord, Power cable, DMX cable
