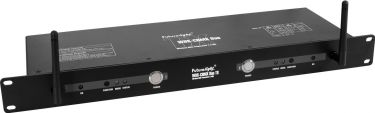

Futurelight WDS-CRMX Duo TX Wireless DMX Transceiver

10B05F19

8.909,00NOK

The price includes 25% Danish VAT

In stock
Delivery time: 1 - 3 workdays.

Delivery time: 1 - 3 workdays.

Wireless DMX system 2.4 GHz - two transceivers with CRMX unit in 19" housing

Transceiver, to be used as transmitter or receiver
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
Can receive and process up to 1024 DMX channels
Can transmit up to 1024 DMX channels
Multicolored LED indicator
(19) 48.3 cm rack installation 1 U
Control via CRMX by LumenRadio; W-DMX by wireless solution
Operating range up to 600m with line-of-sight
Up to 10 transmitters can be operated in parallel without interference
Mains input and output for power linking up to 8 units
1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	3 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Device fuse:	T 1 A fuse serviceable
DMX channels:	Input 1024 Output 1024
DMX input:	2 x 3-pin XLR (M) mounting version 2 x 5-pin XLR (M) mounting version
DMX output:	2 x 3-pin XLR (F) mounting version 2 x 5-pin XLR (F) mounting version
Control:	CRMX by LumenRadio; W-DMX by wireless solution
Range:	Range up to 600m with line-of-sight
Carrier frequency:	2.4 GHz
Parallel mode:	Max. 10 transmitter
Antenna gain:	3 dBi
Modulation:	GFSK
Status LED:	DMX, level meter, power
Color:	Black
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Length: 48.3 cm Depth: 14.0 cm Height: 44 cm
Weight:	1.33 kg
